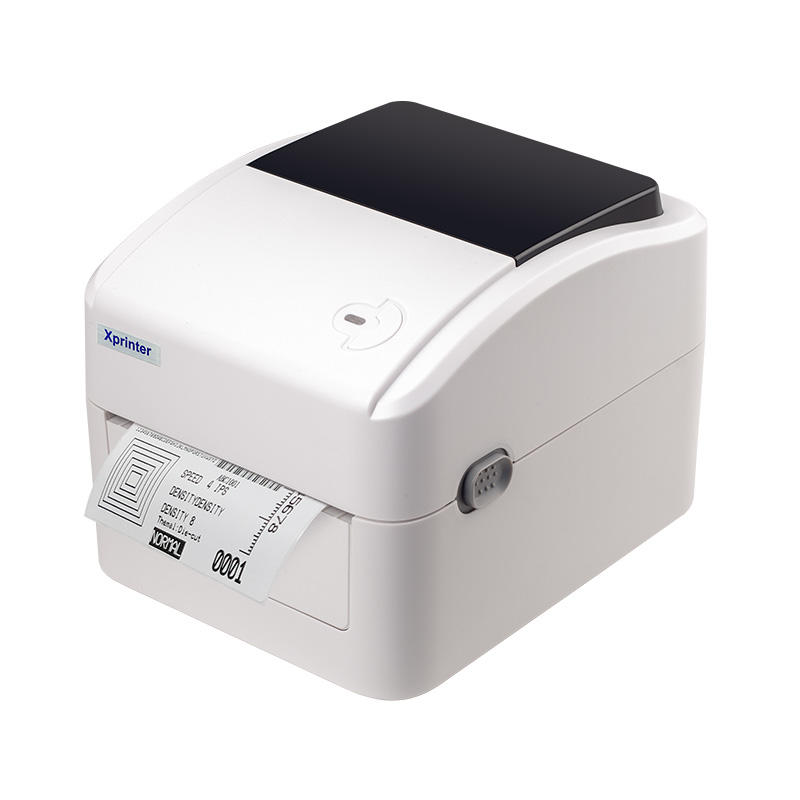

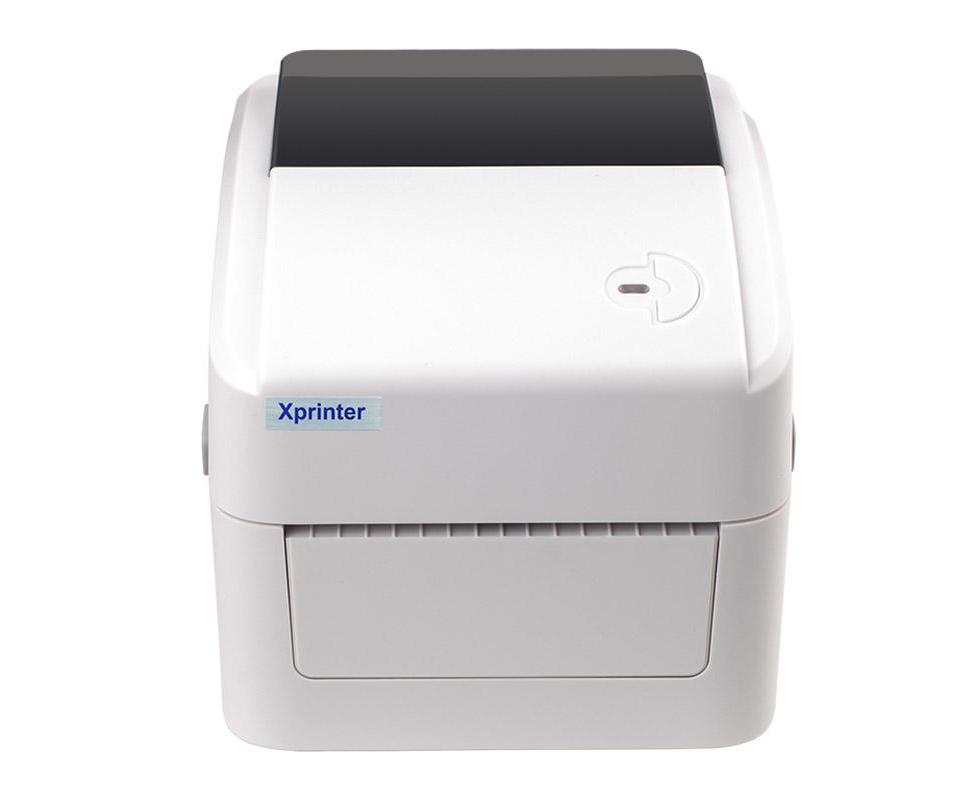

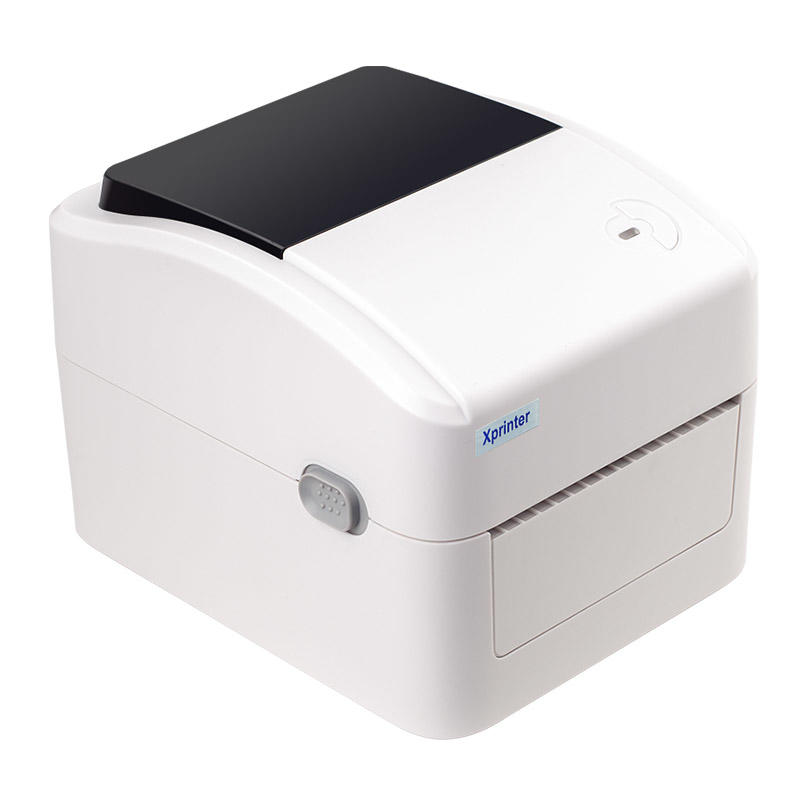

Thermal Label Printer 4 inch XP-420B
Available on backorder
Product Specification
| Model | XP-420B | |
| Printing Features | ||
| Resolution | 203 DPI | |
| Printing method | Direct Thermal | |
| Max.print speed | 152 mm (6″) / s Max. | |
| Max.print width | 108 mm (4.25”) | |
| Max.print length | 1778 mm | |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4 mm ~ 115 mm | |
| Media thickness | 0.06~0.254 mm (2.36~10mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1 “~ 3 “) | |
| Label length | 10 mm ~1778 mm | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB | |
| Interface | Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card | |
| Sensors | ①Gap sensor ②Cover opening sensor ③Black mark sensor |
|
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11 | |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
| Rotation | 0°、90°、180°、270° | |
| Emulaion | TSPL、EPL、ZPL、DPL | |
| Physical Features | ||
| Dimension | 215 mm (L) x 178 mm (W) x 155 mm (H) | |
| Weight | 1.31 kg | |
| Reliability | ||
| Warranty | One year | |
| Print head life | 30 km or first arrival first | |
| Software | ||
| Driver | Windows/ Linux/ Mac | |
| SDK | Windows/ Android/ iOS | |
| Power supply | ||
| Input | AC 110-240V | |
| Output | DC 24V 2.5A | |
| Options | ||
| Factory Options | ①Peeler ②Cutter ③RTC | |
| Dealer Options | ①External paper roll holder ②Paper roll spindle ③Extension board for external paper roll holder |
|
| Environmental Conditions | ||
| Operation environment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing | |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing | |
