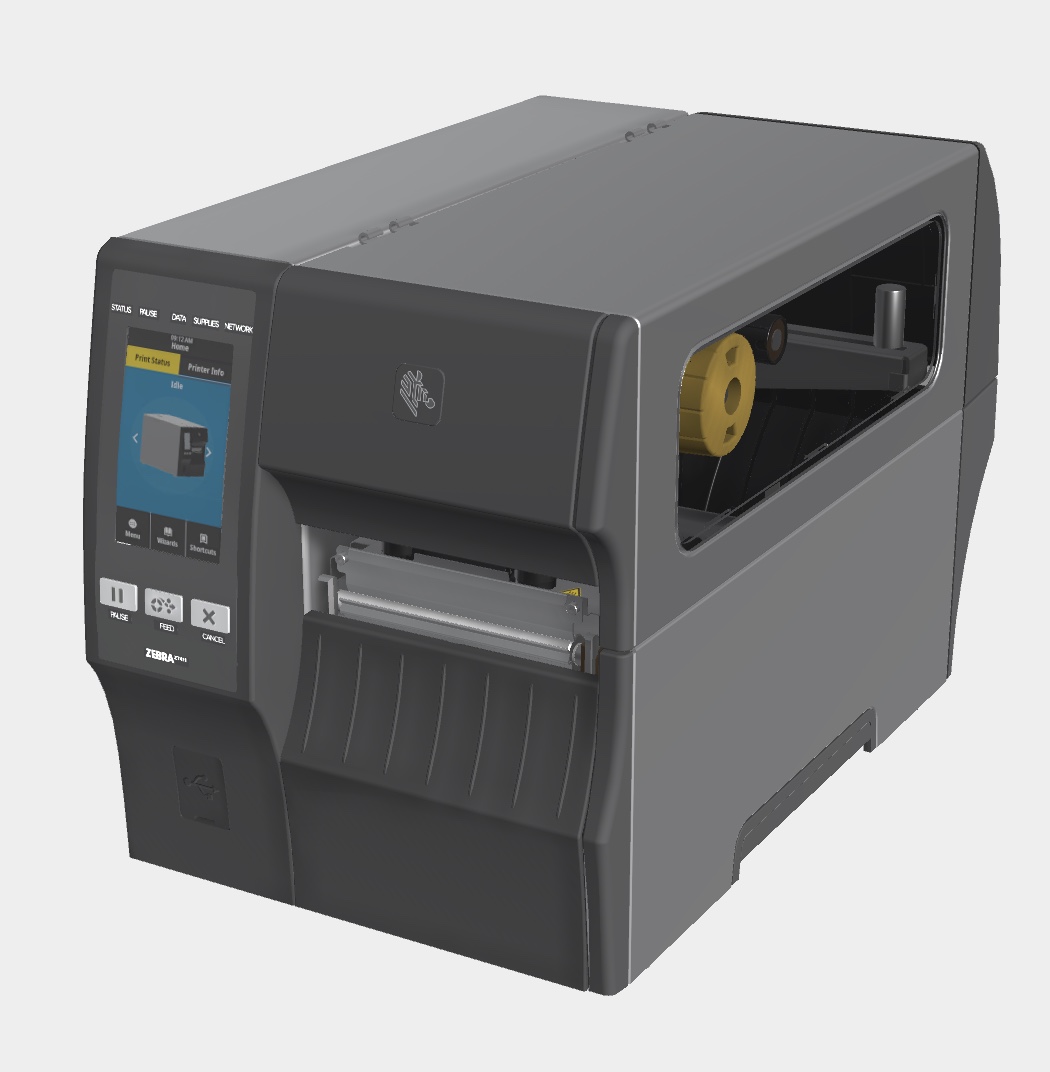

Zebra ZT411 industrial RFID printer

Constructed with an all-metal frame and bi-fold door, ZT411 printers deliver advancements in print speed, registration and connectivity as well as additional advanced features.

  • Multiple connectivity options, including the latest Wi-Fi. The ZT411 RFID comes standard with Ethernet, USB, USB Host, and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1, for blazing fast and reliable wireless connections.
  • You can count on the ZT411 to print a variety of different label formats on a variety of different media types.

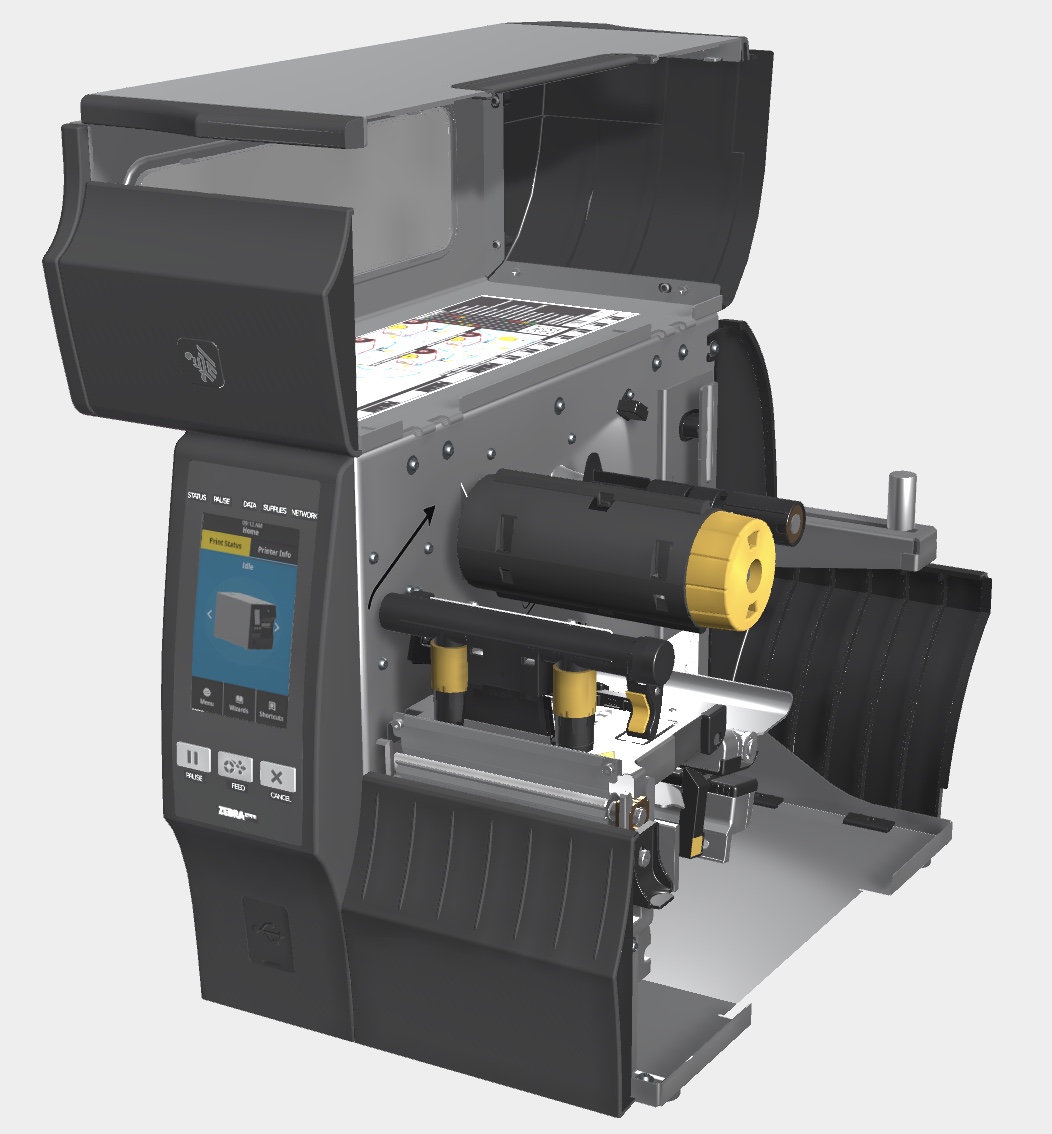

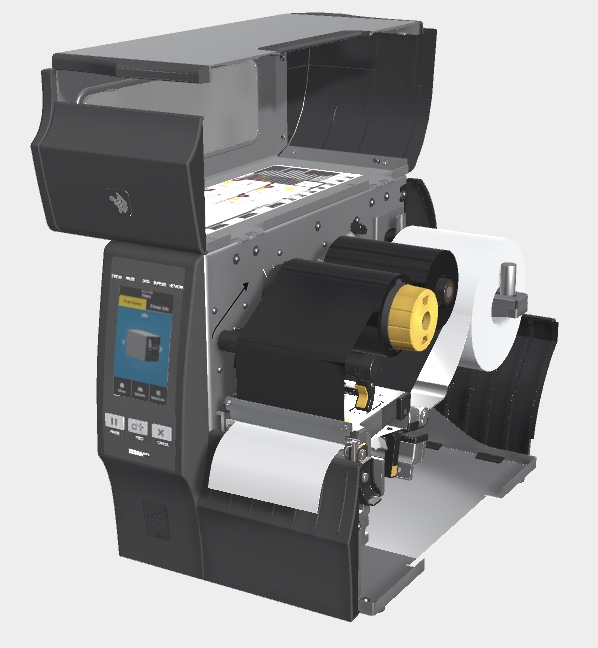

  • The side-loading supplies path makes loading simpler, faster and more intuitive. The color-coded media path guides the user on how to thread the media and ribbon through the printer, while lighted paths make it easy to see, even in poorly lit environments.
  • Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments.
  • Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.



Standard Features

Printing

  • Thermaltransferanddirectthermalprinting
  • ThinfilmprintheadwithE3TMElementEnergyTMEqualizer for superior print quality
  • 203 dpi print resolution (8 dots/mm)
  • Print speed per second up to 14 in. (356 mm/second)

Communication

  • USB 2.0, high speed
  • RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400– 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
  • 10/100Ethernet:Supportsnetworks internally integrated option that enables the use of Webview and Alert features
  • Bluetooth® 4.1 (including Apple®)
  • Dual USB Host

Operation

    • 4.3 in. color touch display with intuitive menu for quick operation and
      settings management
    • Bi-colored status LEDs for quick printer status
    • ARM Cortex A7 processor
    • 256 MB RAM memory (8 MB User Available)
    • 512 MB Flash memory (64 MB User Available)
    • PrintTouchapplication
    • Link-OS®-enabled
    • Auto-switching100-240Vpowersupply
    • ENERGY STAR® qualified
    • Printheadelementoutdetection

Media Support

  • Dualmediasensors—transmissive and reflective
  • 3 in. media supply hanger
  • Autocalibrationwhenprinteristurnedonor when printhead is closed

Design

  • Easy,side-loadingmetalprintmechanism
  • Tool-lessprintheadandplatenreplacement
  • Metal media cover with enlarged clear viewing window
  • Robust-goldusertouchpointsindicating key adjustments
  • Bi-foldmediadoordecreasingoverall operating space by 35%

Firmware

  • Resident ZPL®, ZPL II® and EPLTM programming languages, selectable through software or front panel
  • XML-EnabledPrinting—allowsXML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs



Download zt411-tech-specs-en-us
